Batch Mean Batch Correlation on a correlated time series

This example demonstrates the Batch Mean Batch Correlation (BMBC) method to compute uncertainty of empirical mean estimator when samples are not i.i.d.

Setup and imports

import openturns as ot
import otExperimentalMeasurement as otEM
import matplotlib
matplotlib.use('Agg')
import matplotlib.pyplot as plt

Generate correlated time series

Create a correlated time series with N=100000 points

N = 1000000
X = ot.Sample.BuildFromPoint(list(range(N)))
Y = ot.Sample(N, 1)

# Generate autocorrelated data with coefficient 0.9
autoCorrelationCoeff = 0.9
distR = ot.Uniform(0, 1)
RSample = distR.getSample(N)
Y[0, 0] = 1
for i in range(1, N):
    Y[i, 0] = (
        Y[i - 1, 0] * autoCorrelationCoeff
        + (1.0 - autoCorrelationCoeff) * RSample[i, 0]
    )

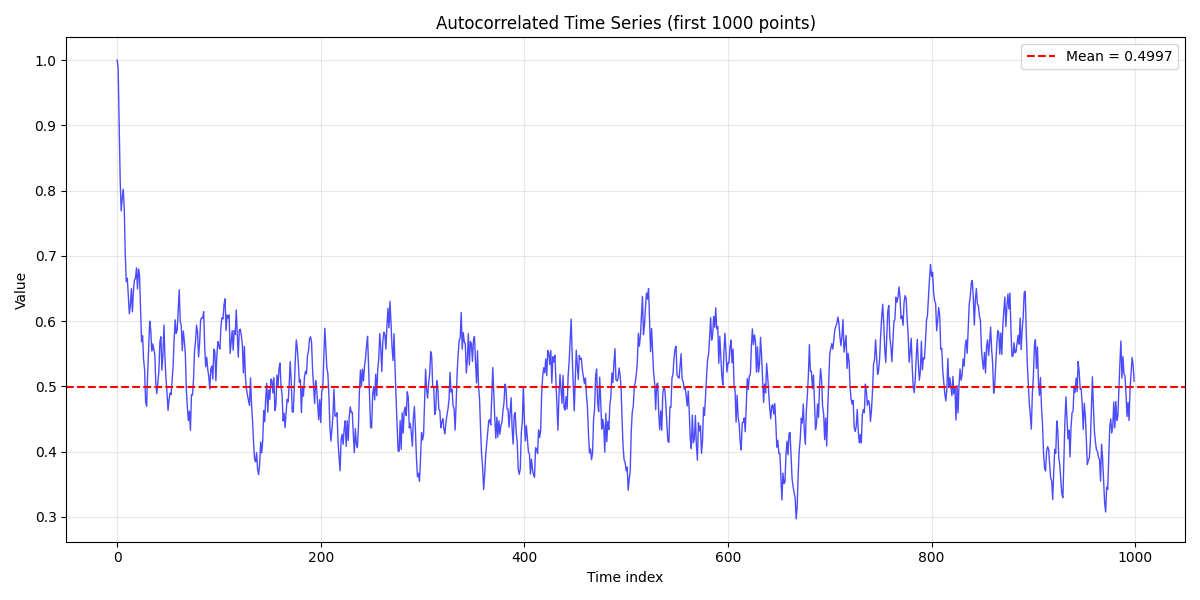

Visualize the time series

Plot a subset of the time series to show the correlation structure

fig_ts = plt.figure(figsize=(12, 6))
ax_ts = fig_ts.add_subplot(1, 1, 1)

# Plot first 1000 points to show the autocorrelation structure
subset_size = 1000
ax_ts.plot(X[:subset_size, 0], Y[:subset_size, 0], 'b-', linewidth=1, alpha=0.7)
ax_ts.set_xlabel('Time index')
ax_ts.set_ylabel('Value')
ax_ts.set_title(f'Autocorrelated Time Series (first {subset_size} points)')
ax_ts.grid(True, alpha=0.3)

# Add mean line
y_mean = Y[:, 0].computeMean()[0]
ax_ts.axhline(y=y_mean, color='r', linestyle='--',
              label=f'Mean = {y_mean:.4f}')
ax_ts.legend()
plt.tight_layout()

# Save time series plot
ts_output_file = '/tmp/bmbc_time_series.png'
plt.savefig(ts_output_file, dpi=150, bbox_inches='tight')
print(f"Time series plot saved to {ts_output_file}")

Time series plot saved to /tmp/bmbc_time_series.png

Apply Batch Mean Batch Correlation

Initialize BMBC with adaptive batch sizing

M = 300  # Initial batch size
threshold = 0.2  # Lower threshold for S1/S0 ratio
upperThreshold = 0.6  # Upper threshold for S1/S0 ratio

bmbc = otEM.BatchMeanBatchCorrelation(
    X, Y,
    threshold=threshold,
    upperThreshold=upperThreshold,
    fixedBatchSize=False,
    startBatchSize=M,
    sortSample=False
)

Run the algorithm

bmbc.run()
result = bmbc.getResult()

Compute and display variance of mean estimator

var_mu = result.computeMeanEstimatorVariance()
print(r"Variance of mean estimator: $N \sigma^2_{\mu}$ = %.4f" % (N * var_mu))
print("Expected value for comparison: ~0.0834")

Variance of mean estimator: $N \sigma^2_{\mu}$ = 0.0804
Expected value for comparison: ~0.0834

Compute 95% confidence interval for the mean

Calculate 95% confidence interval using the variance estimate

std_mu = var_mu**0.5  # Standard error of the mean
z_score = 1.96  # 95% confidence interval for normal distribution
confidence_interval = (y_mean - z_score * std_mu, y_mean + z_score * std_mu)

print(f"\n95% Confidence Interval for the Mean:")
print(f"  Point estimate: {y_mean:.6f}")
print(f"  Standard error: {std_mu:.6f}")
print(f"  Lower bound:    {confidence_interval[0]:.6f}")
print(f"  Upper bound:    {confidence_interval[1]:.6f}")
print(f"  Margin of error: {(confidence_interval[1] - confidence_interval[0])/2:.6f}")
print(f"  Relative error: {(confidence_interval[1] - confidence_interval[0])/(2*y_mean)*100:.2f}%")

95% Confidence Interval for the Mean:
  Point estimate: 0.499707
  Standard error: 0.000283
  Lower bound:    0.499151
  Upper bound:    0.500262
  Margin of error: 0.000556
  Relative error: 0.11%

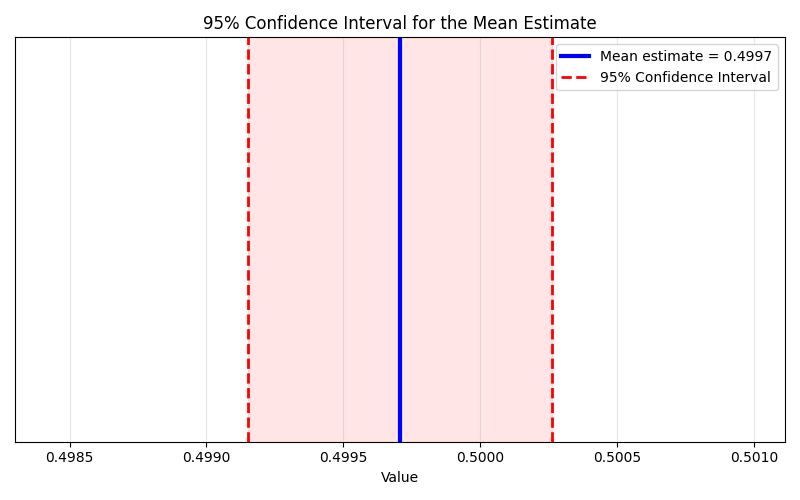

Visualize confidence interval

Create a visualization showing the mean estimate with confidence interval

fig_ci = plt.figure(figsize=(8, 5))
ax_ci = fig_ci.add_subplot(1, 1, 1)

# Plot the mean estimate
ax_ci.axvline(x=y_mean, color='blue', linewidth=3,
              label=f'Mean estimate = {y_mean:.4f}')

# Plot confidence interval
ax_ci.axvline(x=confidence_interval[0], color='red', linestyle='--',
              linewidth=2, label='95% Confidence Interval')
ax_ci.axvline(x=confidence_interval[1], color='red', linestyle='--', linewidth=2)

# Fill confidence interval area
ax_ci.fill_between([confidence_interval[0], confidence_interval[1]],
                   [0, 0], [1, 1], color='red', alpha=0.1)

# Formatting
ax_ci.set_xlim(confidence_interval[0] - 3*std_mu, confidence_interval[1] + 3*std_mu)
ax_ci.set_ylim(0, 1)
ax_ci.set_xlabel('Value')
ax_ci.set_title('95% Confidence Interval for the Mean Estimate')
ax_ci.legend()
ax_ci.grid(True, alpha=0.3)

# Remove y-axis ticks as they're not meaningful here
ax_ci.set_yticks([])
plt.tight_layout()

# Save confidence interval plot
ci_output_file = '/tmp/bmbc_confidence_interval.png'
plt.savefig(ci_output_file, dpi=150, bbox_inches='tight')
print(f"\nConfidence interval plot saved to {ci_output_file}")

Confidence interval plot saved to /tmp/bmbc_confidence_interval.png

Analyze iteration results

Get iteration results

resultSample = result.getBatchIteration()
print(f"\nNumber of iterations: {resultSample.getSize()}")
print("Result columns:", resultSample.getDescription())

Number of iterations: 8
Result columns: [iteration,M,S0,S1,$S_1/S_0$]

Display detailed iteration information

print("\nIteration details:")
for i in range(resultSample.getSize()):
    row = resultSample[i]
    print(f"Iteration {int(row[0])}: M={int(row[1])}, S0={row[2]:.3f}, S1={row[3]:.3f}, S1/S0={row[4]:.4f}")

Iteration details:
Iteration 0: M=300, S0=0.872, S1=-0.018, S1/S0=-0.0212
Iteration 2: M=210, S0=1.795, S1=-0.015, S1/S0=-0.0086
Iteration 3: M=147, S0=3.568, S1=0.056, S1/S0=0.0158
Iteration 4: M=102, S0=7.270, S1=0.217, S1/S0=0.0298
Iteration 5: M=71, S0=14.241, S1=0.971, S1/S0=0.0682
Iteration 6: M=49, S0=28.052, S1=3.069, S1/S0=0.1094
Iteration 7: M=34, S0=52.761, S1=9.080, S1/S0=0.1721
Iteration 8: M=23, S0=98.340, S1=26.769, S1/S0=0.2722

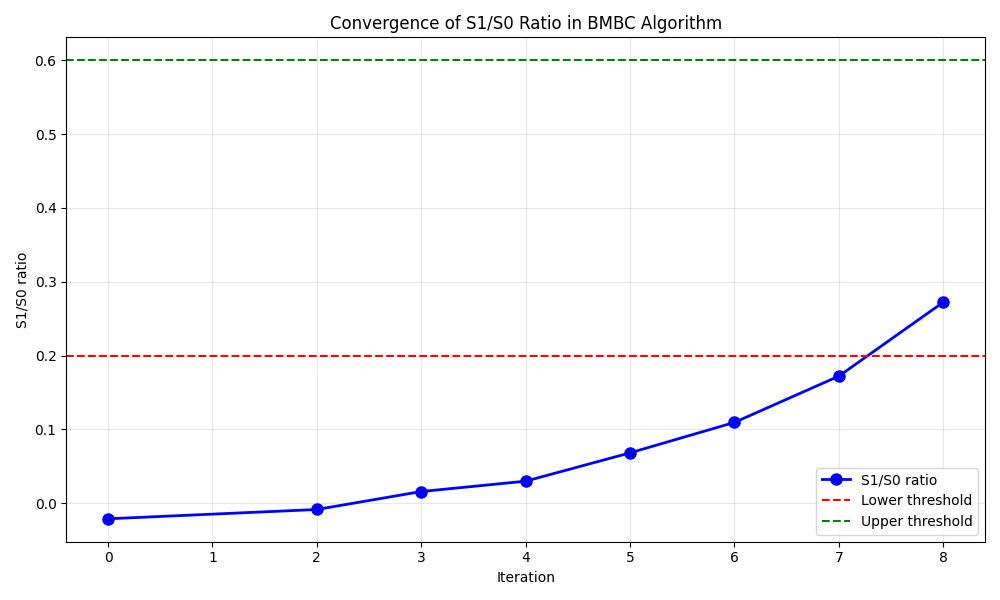

Visualize S1/S0 evolution

Create the plot

fig = plt.figure(figsize=(10, 6))
ax = fig.add_subplot(1, 1, 1)

# Plot S1/S0 ratio evolution
ax.plot(resultSample[:, 0], resultSample[:, 4], 'bo-',
         linewidth=2, markersize=8, label='S1/S0 ratio')

# Add threshold lines
ax.axhline(y=threshold, color='r', linestyle='--', label='Lower threshold')
ax.axhline(y=upperThreshold, color='g', linestyle='--', label='Upper threshold')

# Formatting
ax.set_xlabel('Iteration')
ax.set_ylabel('S1/S0 ratio')
ax.set_title('Convergence of S1/S0 Ratio in BMBC Algorithm')
ax.legend()
ax.grid(True, alpha=0.3)
plt.tight_layout()

Save the plot

output_file = '/tmp/bmbc_s1_s0_evolution.png'
plt.savefig(output_file, dpi=150, bbox_inches='tight')
print(f"\nPlot saved to {output_file}")

Plot saved to /tmp/bmbc_s1_s0_evolution.png

Block Bootstrap demonstration

Generate bootstrap sample using optimal batch size

bootstrapSample = result.getBlockBoostrapSample()
print(f"\nBlock bootstrap sample generated with {bootstrapSample.getSize()} points")
print("First 5 values:", [bootstrapSample[i, 0] for i in range(5)])
print("Last 5 values:", [bootstrapSample[i, 0] for i in range(-5, 0)])

Block bootstrap sample generated with 999994 points
First 5 values: [0.4908951210193917, 0.4679752576855539, 0.494726168125481, 0.46916975537227334, 0.4240190621493513]
Last 5 values: [0.5496838111619834, 0.5110502430591896, 0.5527676061088337, 0.596905114757615, 0.5431608692259351]
